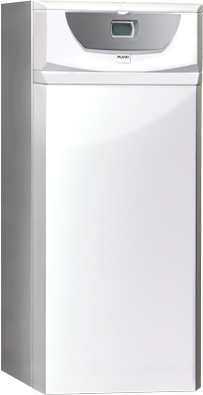

IranRadiator Boiler

Z 60FA

Benefits

  • High efficiency
  • 120 lit stainless steel water tank
  • Easy installation, commissioning, service and maintenance
  • Digital control system
  • Silent operation
  • Small size and less space occupation
  • Water shortage protection system
  • Frost protection feature
  • Equipped with air pressure switch for protection against flue blockage
  • Constant domestic hot water temperature

Product Specifications

Value UNIT Model
55kWHeating input
50kWHeating output
3barMaximum boiler circuit pressure
85Maximum boiler circuit temperature
35Minimum boiler circuit temperature
3barDrain valve safety pressure of the boiler circuit
12 / 0.7Lit/barSource of boiler circuit expansion
2 / 3.5Lit/barSource of expansion of consumer spa circuit
24I/minConsumption of hot water flow with a temperature difference of 30
6barDischarge valve to ensure safe consumption of hot water circuit
120LitSpa source capacity
90%Efficiency
124m3/hThe amount of fresh air required for combustion
110Medium temperature of combustion
44.5g/sMass flow of combustion products
تک فازvElectric current
298WPower Supply
2AFuse
44IPElectrical protection
145kgNet weight
265kgDegraded net weight
650mmW
1460mmH
595mmD
